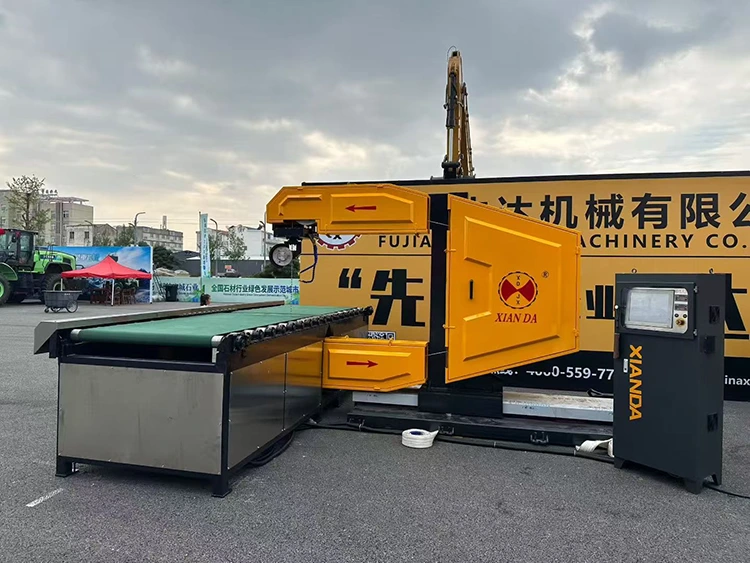

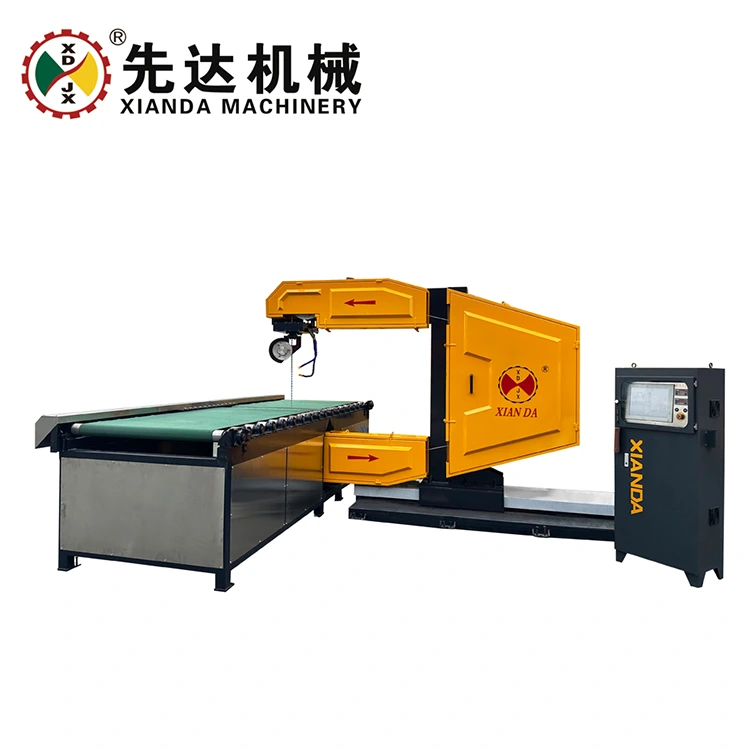

Vertical CNC Diamond Wire Saw Machine
The VCWS-800-03 Vertical CNC Diamond Wire Saw Machine is an intelligent cutting equipment specially engineered by Xianda Machinery for high-precision shape and curved stone processing. Featuring a rigid vertical frame and multi-axis CNC linkage technology, it utilizes diamond wire saw cutting to efficiently process complex curved surfaces, arched slabs, cracked-ice (ice-fracture) patterns, and various custom profiles across marble, granite, and other natural stones.
Model:VCWS-800-03
Send Inquiry
Product Description
Engineered by Xianda Machinery, the VCWS-800-03 Vertical CNC Diamond Wire Saw Machine is built specifically for high-precision stone fabrication, including arc panels, hollow pillars, cracked-ice patterns, and custom profiles. Built around a high-rigidity vertical chassis and driven by an intuitive multi-axis system, this Vertical CNC Diamond Wire Saw Machine combines precise trajectory control with high-throughput production, offering seamless operation across Manual, Auto, and Programmed modes.
Key Performance Highlights
Large-Envelope, 360° Profile Cutting
Handles workpieces up to 2300 × 800 × 300 mm. The continuous A-axis rotation enables flexible multi-angle profiling, while wire speed adjusts from 20 to 40 m/s to suit marble, granite, and engineered stone.
Dual-Trolley Non-Stop Workflow
To maximize uptime, this Vertical CNC Diamond Wire Saw Machine features twin 2200 × 970 mm motorized trolleys, allowing operators to load the next block while the current cycle runs.
Permanent Magnet Drive & High Energy Efficiency
Powered by a 7.5–6 kW permanent magnet main motor paired with an 11 kW variable-frequency drive (16 kW total system power). This powertrain maintains high cutting torque while significantly lowering overall electricity usage.
Tight Kerf, Higher Material Recovery
As a high-yield Vertical CNC Diamond Wire Saw Machine, it produces narrow kerf lines that minimize raw stone waste, lower slurry production, and leave smooth, finish-ready surfaces.
Technical Data
| Parameter | Unit | VCWS-800-03 |
|---|---|---|
| Max Processing Size | mm | 2300 × 800 × 300 |
| Trolley Size | mm | 2200 × 970 × 2 |
| Cutting Line Speed | m/s | 20–40 |
| A-axis Rotation Angle | ° | 0–360° (Rotate at any angle) |
| Workbench Load Capacity | T | 3+3 |
| Main Motor Power | kW | 7.5–6 (Permanent magnet motor) |
| Main Motor Speed Control Function | kW | 11 |
| Total Power | kW | 16 |
| Outline Dimension | mm | 4350 × 4750 × 2350 |

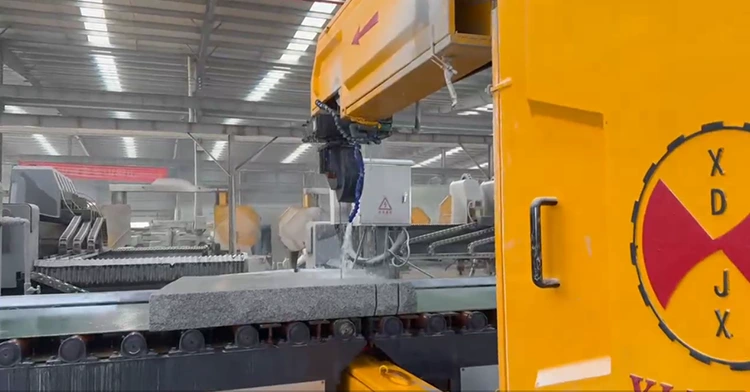

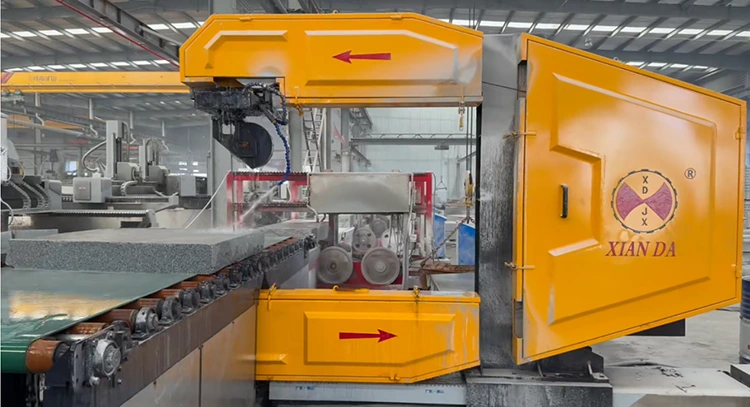

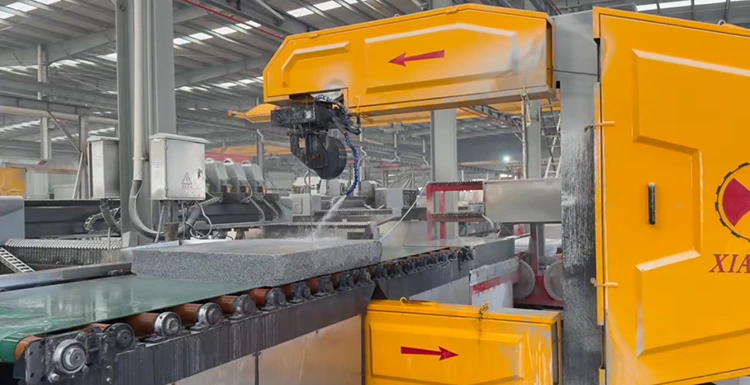

Photo and Video Gallery

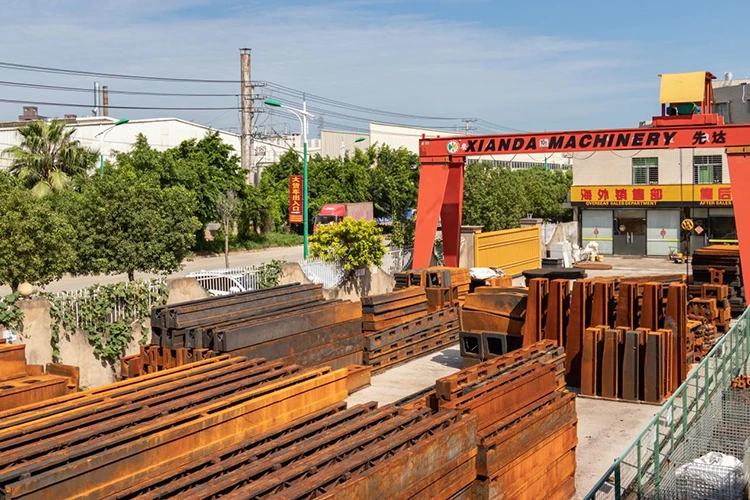

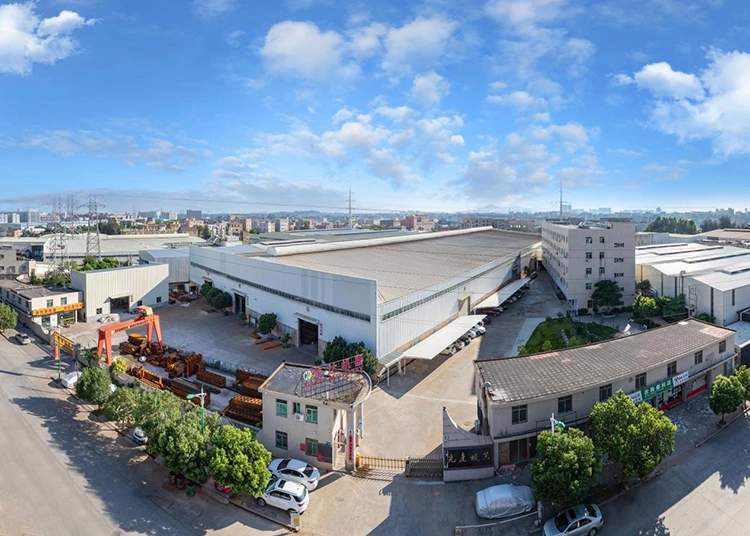

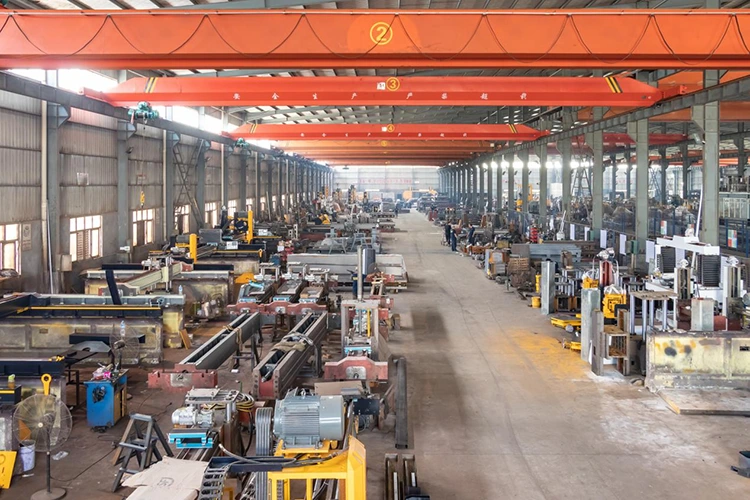

Workshop Overview
Production Lead Time
Production is completed within 15–30 days of receiving the deposit.
Warranty Coverage
All machines and core components come with a 12-month warranty, ensuring peace of mind for your purchase.
Comprehensive Support
We provide comprehensive installation and operating instructions for Hollow Column Cutting Machines.
Our experienced technical team offers global service support.
24/7 online after-sales support is available to assist you anytime.
Have questions? Our sales and customer service teams are always ready to assist you.
Certifications
