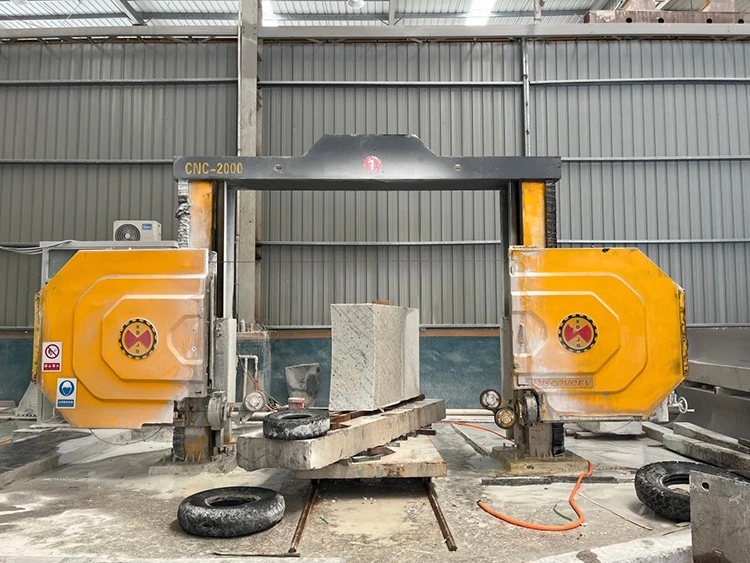

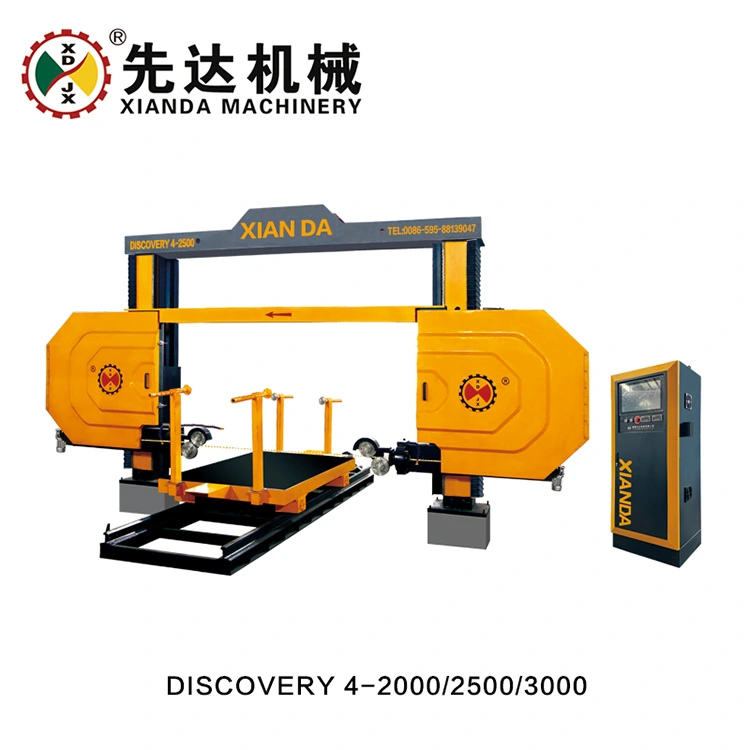

High Efficiency Discovey 4 CNC Diamond Wire Saw Machine

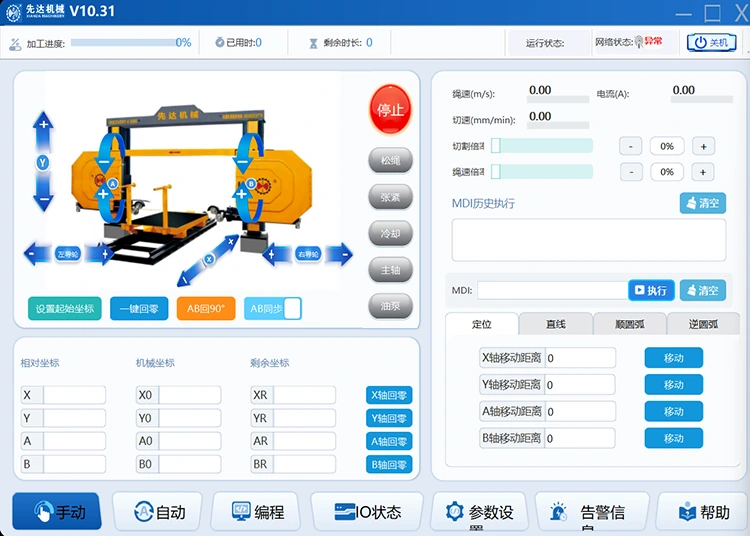

Control System

This Discovery 4 diamond wire saw machine runs on an intelligent CNC platform custom-built for wire cutting, featuring free lifetime software upgrades. Engineered with AI-driven speed acceleration and an instant wire-break emergency shutoff, it delivers both high-speed throughput and operator safety.

Lifting & Transmission

For vertical positioning, this precision diamond wire saw machine relies on a 16-face cast rail design supported by 16 roller sets and 12 top guide wheels. Its double-nut lead screw mechanism allows fine backlash adjustment to maintain long-term alignment accuracy under heavy use.

Wire Tensioning & Drive

To keep wheel runout to a minimum, the Discovery 4-2000/2500/3000 diamond wire saw machine utilizes hydraulic tensioning mounted on heavy-duty linear slides with an oil-immersed enclosure. The guide wheels feature an aluminum-clad steel composite design—combining low inertia with durable steel bearings—dynamically balanced for smooth high-speed rotation. Additionally, the cantilever gearbox employs an S-curved waterproof housing.

Structural Protection

Standard equipment on this heavy-duty diamond wire saw machine includes worktable top-plate clamps and protective guards for the trolley wheels. The main track is constructed from national standard 24#G steel rail, heavily reinforced with H-beams and lateral steel plate bracing.

Technical Data

Photo and Video Gallery

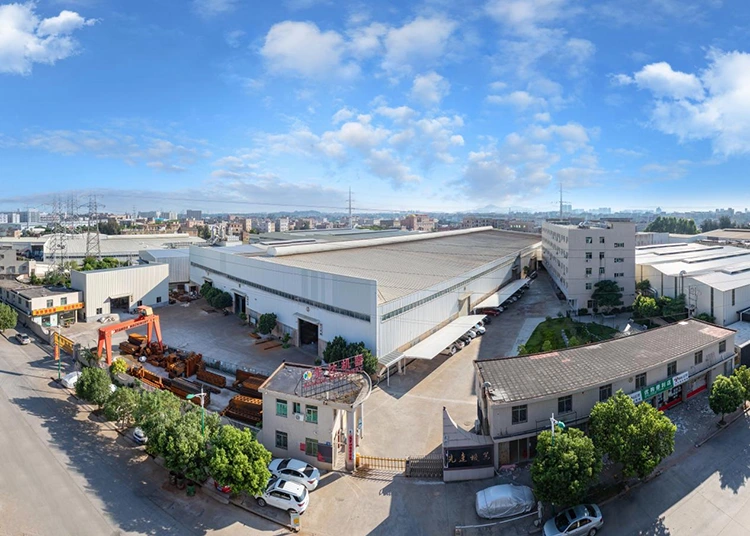

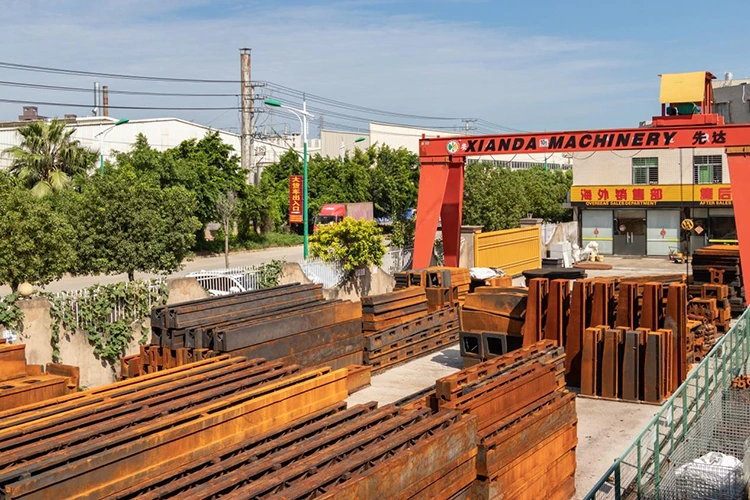

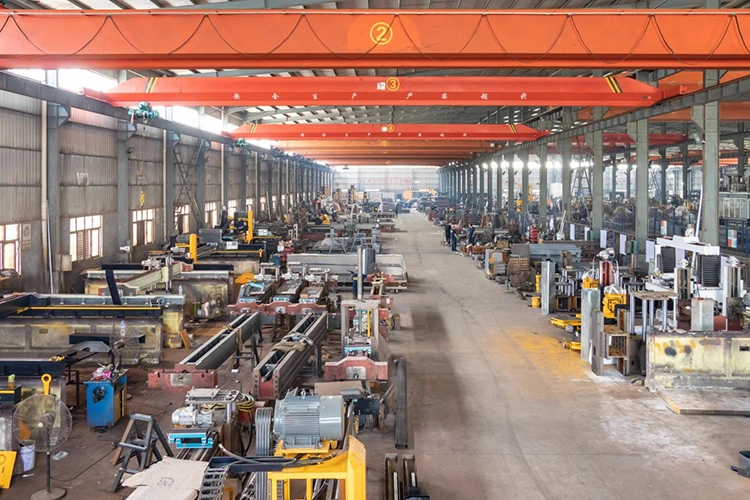

Workshop overview

Production Lead Time

Within 15–30 days of receiving the deposit.

FAQ

Q1: How does the lifting system maintain precise synchronization?

A: A center-mounted servo motor drives both sides simultaneously via custom steering gearboxes. Supported by a 16-face rail with 28 rollers, the double-nut lead screw adjusts clearance to preserve long-term accuracy and safety.

Q2: What ensures component durability in wet cutting environments?

A: The wire tensioner features oil-immersed linear guides, and the cantilever gearbox uses an S-curved waterproof housing. All cast parts undergo 6-month aging, while steel frame components receive tempering and anti-rust treatments.

Q3: How do the guide wheels improve cutting efficiency?

A: Dynamically balanced aluminum-clad steel wheels reduce rotation inertia while maintaining heavy-duty bearing strength. Integrated rubber rings dampen wire vibration, speeding up cuts and lowering consumable wear.

Warranty Coverage

All machines and core components come with a 12-month warranty, ensuring peace of mind for your purchase.
