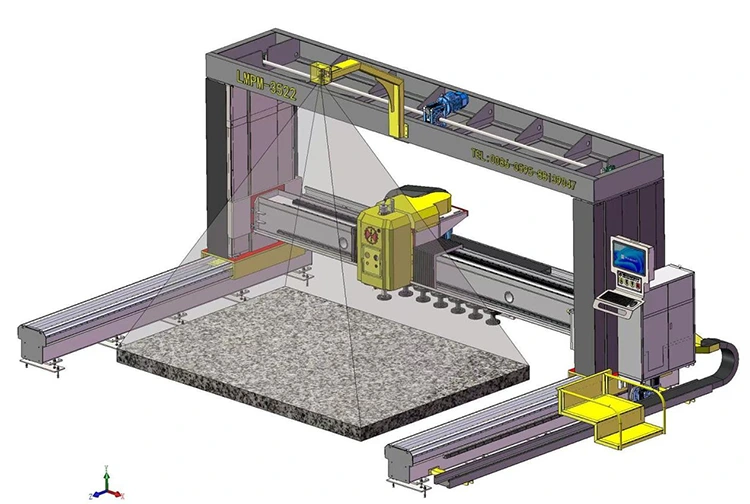

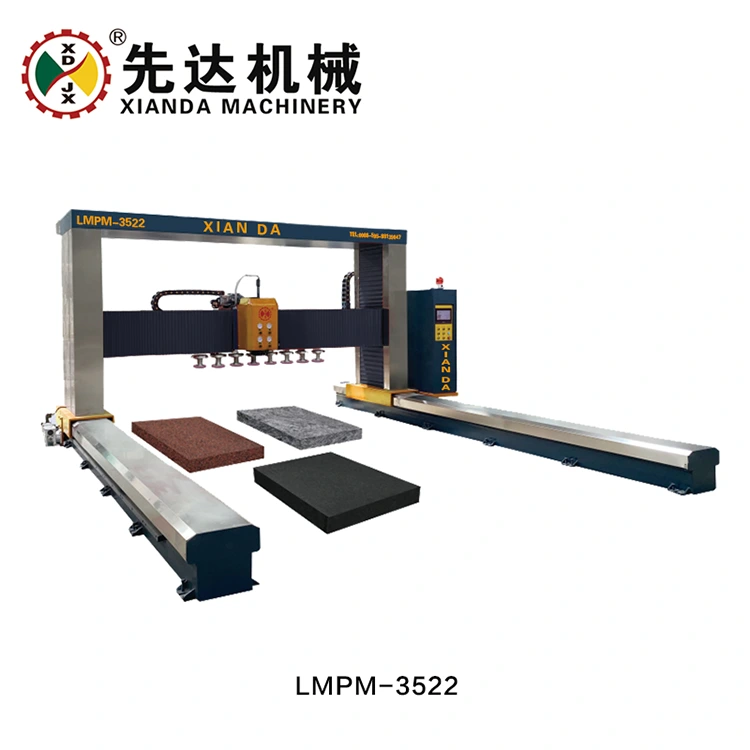

Gantry Type Automatic Stone Polishing Machine
The XIANDA LMPM-3522 Series Gantry Type Automatic Stone Polishing Machine is a high-efficiency automatic stone polishing system designed for granite, marble, and quartz fabrication. Featuring microcomputer controls, a robust four-guide-rod crossbeam lifting structure, pneumatic spindle control, and a dual-motor Y-axis drive system, it easily handles products of various sizes, materials, and process requirements.
Send Inquiry
Product Description
Manufactured by Fujian Xianda Machinery Co., Ltd., the LMPM-3522 Gantry Type Automatic Stone Polishing Machine utilizes a gantry mobile structure equipped with linear guide rails and high-precision gear-and-rack drive mechanisms. Its specially engineered polishing system enables independent on/off control, variable speed adjustment, and precise pressure regulation for each polishing station.
With its automatic tool-changing system, operators can achieve full automation across multiple polishing cycles, drastically reducing labor intensity and enabling one operator to supervise multiple machines effortlessly.
Technical data
|
Parameter |
Unit |
LMPM-3522 |
LMPM-3522SJ |
|
Number of Tool Stations |
pcs |
8 |
8 |
|
Number of Spindle Heads |
pcs |
1 |
1 |
|
Station Replace Method |
/ |
Automatic |
Automatic |
|
Lifting Stroke |
mm |
800 |
800 |
|
Left and Right Travel |
mm |
2200 |
2200 |
|
Front and Back Travel |
mm |
3500 |
3500 |
|
Main Motor Power |
kW |
11 |
11 |
|
Total Power |
kW |
17 |
17 |
|
Overall Dimensions |
mm |
6800 × 4000 × 2800 |
6800 × 4000 × 3560 |
Key Engineering Highlights & Options
Automatic 8-Station Tool Changer: Enables seamless transitioning from coarse grinding to mirror-finish polishing without manual operator downtime.
Optional Camera Vision Module: Automatically scans slab contours, irregular shapes, and surface defects to optimize tool path.
Heavy-Duty Gantry Architecture: Built with reinforced structural steel and high-precision linear guide rails to guarantee long-term precision under 24/7 industrial operating conditions.
(optional) Camera Module
Payment & Shipping
Packaging: Wire rope lashing,Suitable for sea transportation.
Delivery Time: Within 15 days after order confirmation.
Payment Terms: L/C, T/T, D/P, Western Union, PayPal, Money Gram, and others.
Supply Capacity: 1000 sets per year.
Support & Services
On-site installation and machine setup assistance.
Comprehensive operator training and troubleshooting support.
Scheduled maintenance services to maximize machine lifespan and performance.
Warranty Coverage
12-month warranty, ensuring peace of mind for your purchase.
Order Your XIANDA CNC Machine Today!
Interested in upgrading your stone processing capabilities? Contact us for a quote or more information about the LMPM-3522 Series Gantry Type Automatic Stone Polishing Machine .
Certifications
XIANDA machines meet international standards, including:
CE, ISO, SGS, CCC, GOST, SONCAP, API, IAF
