Gantry Movable Diamond Wire Saw Machine Series
The Xianda Gantry Movable Diamond Wire Saw Machine Series (GWS-3500-21, CGWS-3500-21, and GWS-3500-25FW) is engineered for heavy-duty stone squaring, slab slicing, and large-scale block profiling. Featuring a robust gantry structure, the series handles blocks up to 3500 × 3500 × 2500 mm. Available in both straightforward PLC and multi-axis CNC configurations, these machines run on a 15 kW drive system with wire speeds adjustable from 20 to 40 m/s, delivering high cutting accuracy, lower kerf loss, and dependable throughput for quarrying and stone processing yards.

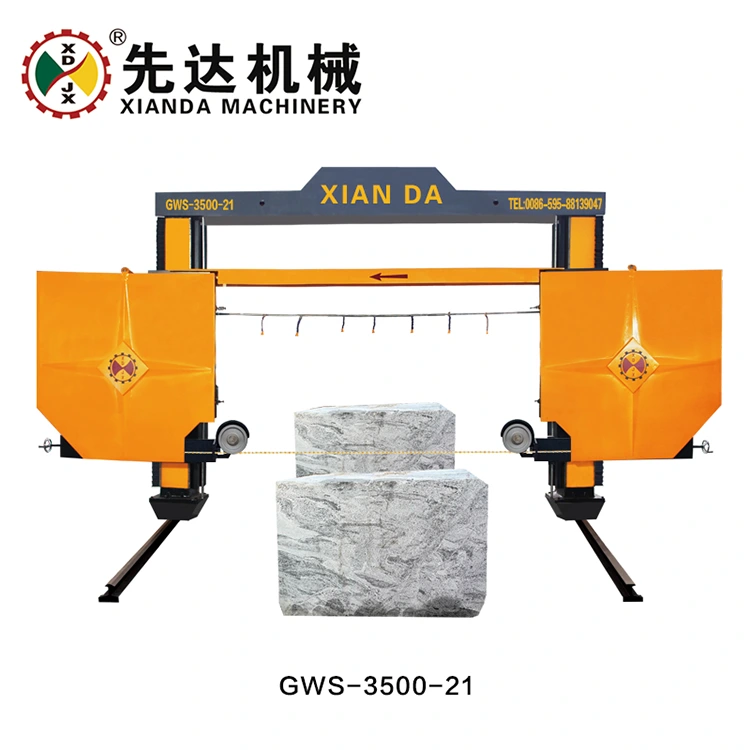

Model:GWS-3500-21, CGWS-3500-21, GWS-3500-25FW
Send Inquiry
Product Description

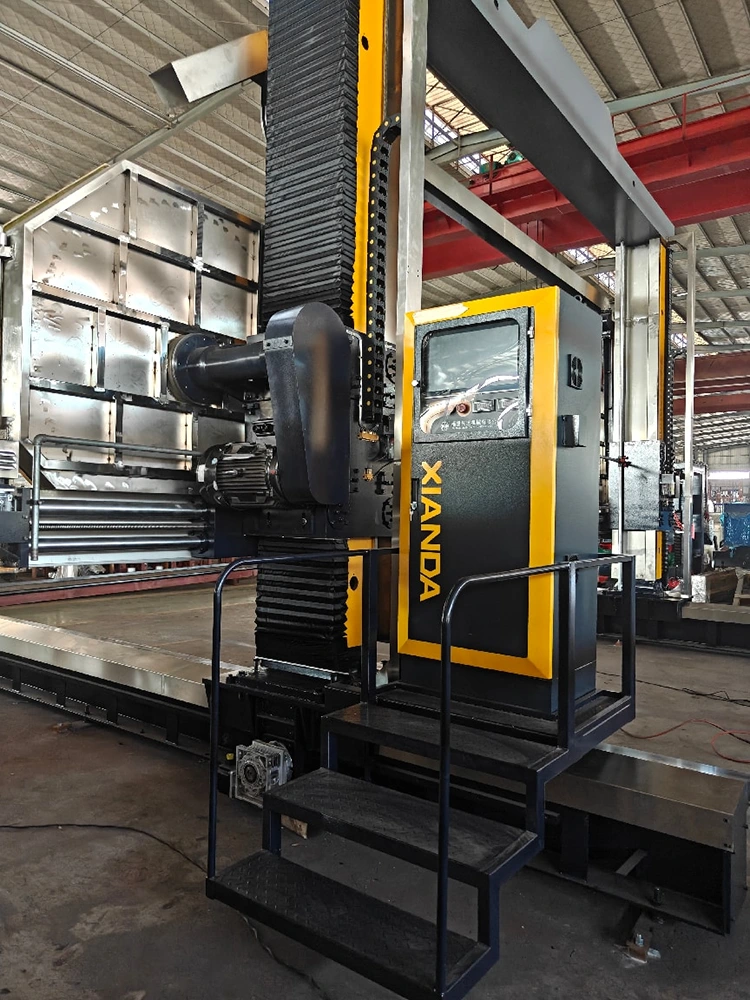

Designed to overcome the workpiece limitations of traditional stationary wire saws, the Xianda Gantry Movable Diamond Wire Saw Machine Series uses a mobile bridge structure that travels directly over massive raw blocks. Built for marble, granite, and composite stone, the Gantry Movable Diamond Wire Saw Machine excels at block squaring, thick slab cutting, and custom architectural shapes. Buyers can choose between PLC controls for efficient everyday production or CNC integration for complex curved profiles.
Key Features
Expanded Cutting Envelope
Capable of processing giant blocks up to 3500 × 3500 × 2100 mm (with the 25FW variant extending vertical clearance to 2500 mm).
Variable-Speed High-Torque Drive
Driven by a 15 kW main motor, the variable wire speed (20–40 m/s) allows operators to match cutting speed with stone hardness, extending diamond wire life while keeping feed rates steady.
Flexible Control Platforms
PLC Models (GWS Series): User-friendly interface designed for rapid block squaring, trimming, and standard dimensional cutting.
CNC Model (CGWS-3500-21): Features multi-axis interpolation for accurate profiling along complex arc paths and irregular geometries.
Sustainable & Cost-Effective
The thin-wire cutting process reduces kerf waste and slurry production, operating at a controlled water usage of approximately 4 m³/h.
Technical Data
| Parameter | Unit | GWS-3500-21 | CGWS-3500-21 | GWS-3500-25FW |
|---|---|---|---|---|
| Control System Type | / | PLC | CNC | PLC |
| Max Processing Size | mm | 350 × 3500 × 2100 | 3500 × 3500 × 2100 | 3500 × 3500 × 2500 |
| Wire Speed | m/s | 20–40 | 20–40 | 20–40 |
| Main Motor | kW | 15 | 15 | 15 |
| Outline Dimension | mm | 9800 × 5900 × 5600 | 9800 × 5900 × 5600 | 9600 × 5900 × 6500 |
| Water Consumption | m³/h | ≈4 | ≈4 | ≈4 |

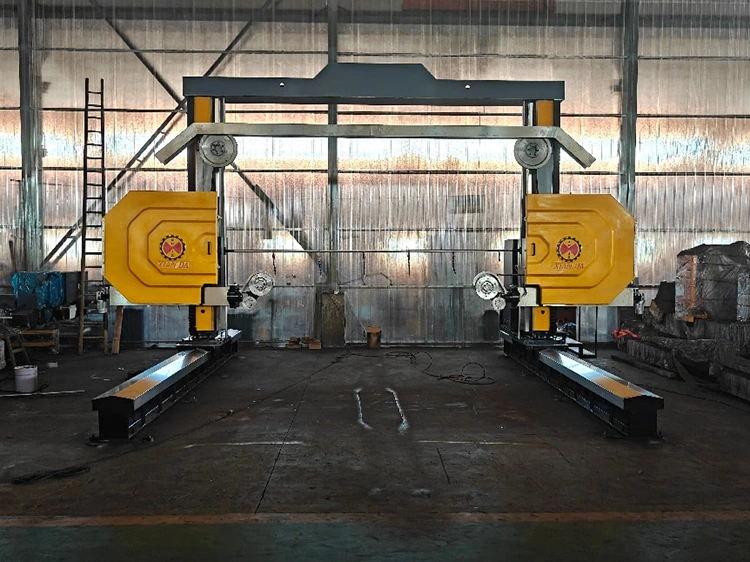

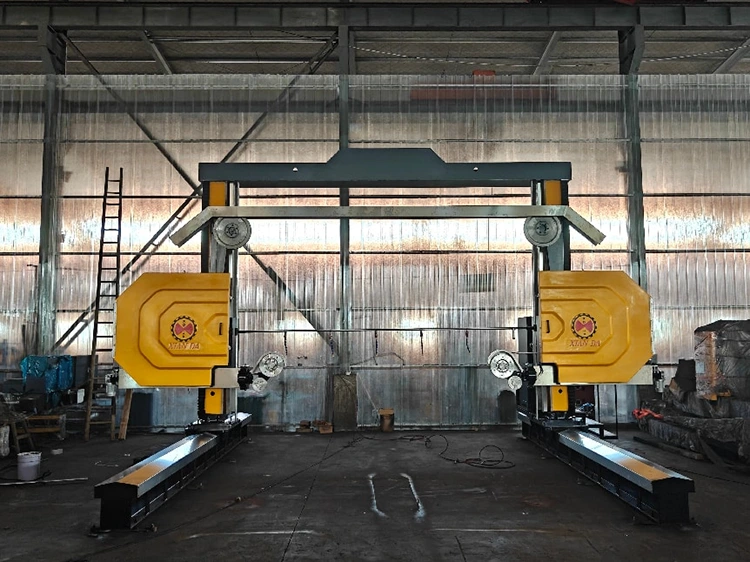

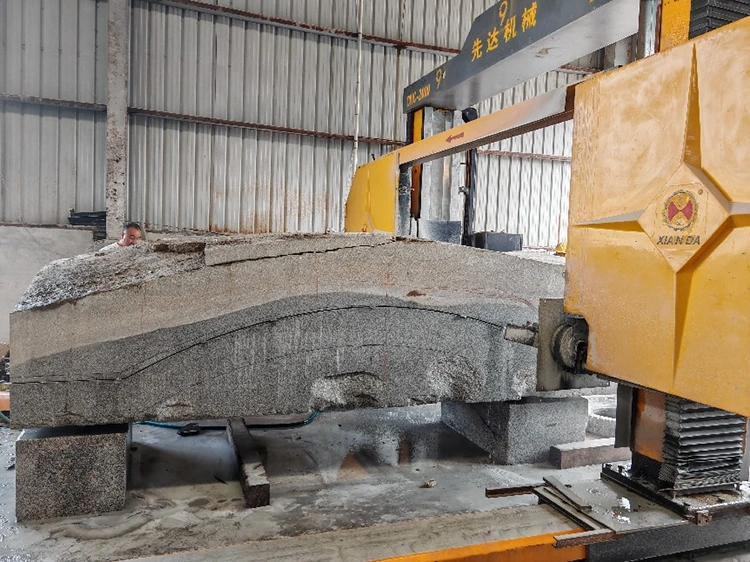

Photo and Video Gallery
Production Lead Time
Production is completed within 15–30 days of receiving the deposit.
Quality Control
We have our own experienced QC team.
Our machines will be strictly inspected.
We will provide a testing video for each machine before shipping if required by the customer.
Warranty
The equipment and its components are covered by a one-year warranty.
