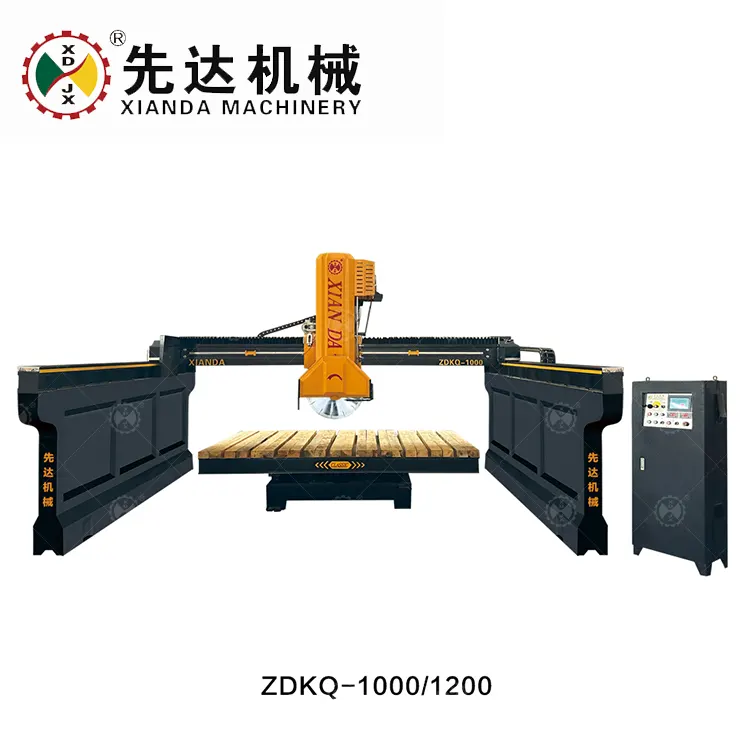

Four Column Bridge Cutter Machine

Xianda ZDKQ-1000/1200 Four Column Bridge Cutter Machine designed with four guide pillars and dual oil cylinders—it lifts and lowers fast, has plenty of power, and stays totally steady while cutting. If you need to cut thick slabs or curbstones, this one will be your best cutting solution.

Send Inquiry

Product Description

This Xianda ZDKQ-1000/1200 Four Column Bridge Cutter Machine is specifically built for processing thick slabs and curbstones. Its core lies in the solid "4 guide pillars + dual oil cylinders" design—it lifts and lowers without any delay, moving really fast so you don’t have to wait around when working with stone. It also packs plenty of power, easily cutting through even the thickest slabs with more than enough strength.

The most important thing is this Four Column Bridge Cutter Machine stays super stable while cutting—no wobbling at all. The stone it cuts has neat edges and accurate dimensions, so you won’t have to spend extra time touching up later. Whether you’re cutting thick slabs daily or processing curbstones in bunches, this machine can finish its cutting efficiency，definitely your best cutting solution.

Technical data

Parameter	Unit	Expand 450	Expand 450L
Blade diameter	mm	Φ500-Φ1000	Φ700-Φ1200
Worktable size	mm	3000x2000	3000x2000
Worktable tilting degree	°	0、90°	0、90°
Main motor	kw	30kw-4 poles	22kw-6poles 30kw-6poles
Gross power	kw	37	29/37
Outline dimension	mm	6150x4800x3700	6150x4800x3900
Gross weight	kg	≈6700	≈7000
Water consumption	m³/h	≈3	≈3


Payment & Shipping

Packaging: Wire rope lashing,Suitable for sea transportation.

Delivery Time: Within 15 days after order confirmation.

Payment Terms: L/C, T/T, D/P, Western Union, PayPal, Money Gram, and others.

Supply Capacity: 1000 sets per year.

Support & Services

On-site installation and machine setup assistance.

Comprehensive operator training and troubleshooting support.

Scheduled maintenance services to maximize machine lifespan and performance.

Warranty Coverage

12-month warranty, ensuring peace of mind for your purchase.

Order Your XIANDA CNC Machine Today!

Interested in upgrading your stone processing capabilities? Contact us for a quote or more information about the Expand 450 Intelligent 4 Axis Stone CNC Machine.
