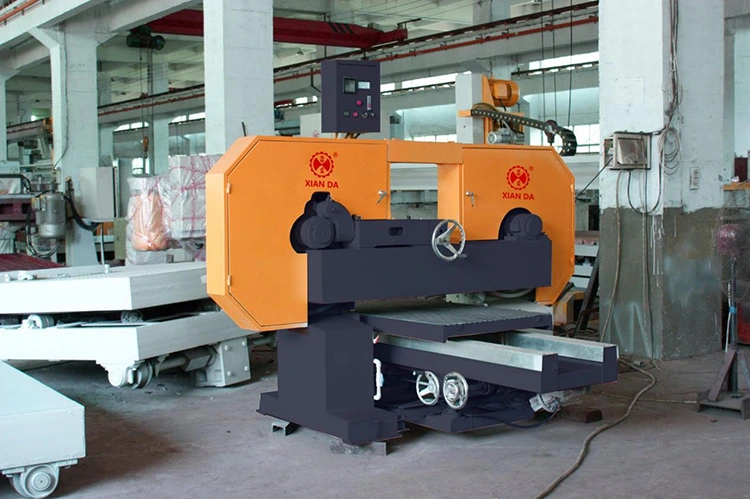

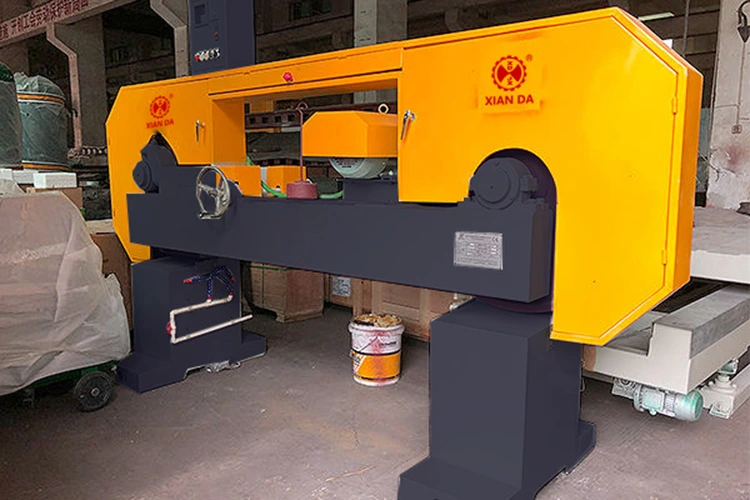

CNC Dual-Purpose Stone Splitting Machine
Heavy-duty CNC stone splitting machine ideal for high-precision marble & granite slab splitting, ultra-thin veneer production, and material yield optimization. Customized widths available.
Send Inquiry
Product Description
Dual-Cutting System (Band Saw + Diamond Wire Saw): Seamlessly switch between band saw mode for fast marble/limestone cutting and diamond wire saw mode for hard granite and quartz materials.
Ultra-Thin Kerf & Minimal Material Loss: Blade thickness ranges from 2–7mm and wire diameter between 6.3–7.3mm, maximizing material yield for high-value stone slabs.
Versatile Working Widths: Available in 1200, 1600, and 2200 series, with custom cutting widths available upon request.
Applications & Material Compatibility
| Application Field | Suitable Materials | Target Products |
|---|---|---|
| Thin Veneer & Composite Slabs | Marble, Limestone, Travertine, Artificial Stone | Honeycomb backing panels, Porcelain-stone composite tiles |
| Book-Matched Decorative Slabs | Luxury Marble, Onyx, Quartzite | Book-matched feature walls, TV backdrops, Hotel lobbies |
| Hard Stone Resawing | Granite, Quartz, High-Silica Stone | Pavers, architectural facing slabs, customized dimension stone |
Technical Parameter Table
| Parameter | Unit | CNC Dual-Purpose Stone Splitting Machine |
|---|---|---|
| Model Type | / | CNC Dual-Purpose 1200 |
| Max Cutting Width | mm | 1250 (Customizable up to 2200 mm) |
| Max. Cutting Thickness | mm | 100 |
| Conveyor Speed Range | mm/min | 0 – 177 |
| Flywheel Diameter | mm | 1100 |
| Band Saw Blade Length | mm | 8300 |
| Diamond Wire Length | mm | 8200 |
| Blade Kerf Thickness | mm | 2 – 7 |
| Wire Saw Diameter | mm | 6.3 – 7.3 |
| Main Motor Power | kW | 7.5 |
| Total Installed Power | kW | 8.99 |
| Water Consumption | m³/h | 2 |
| Total Weight | kg | 2,500 |
| Overall Dimensions | mm | 3500 × 3700 × 2200 |
Why Choose XIANDA

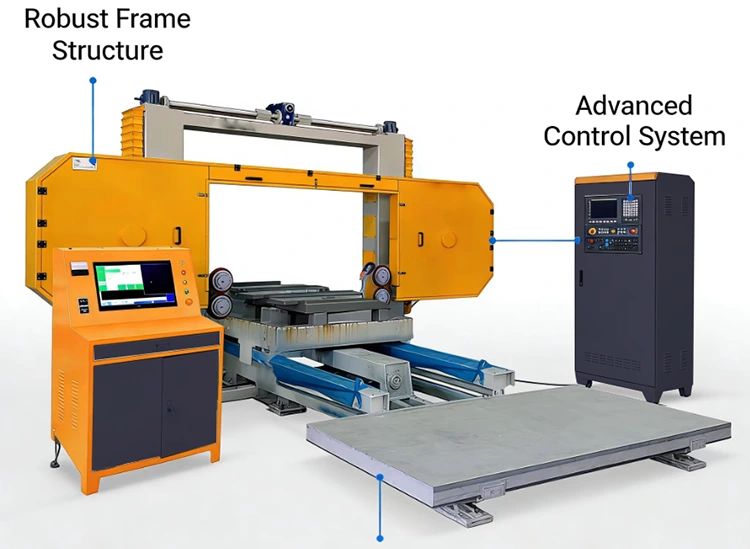

Proven Precision in Industrial Production: Designed with high-rigidity heavy gantry frames (2.5 Tons weight) to absorb vibration during high-speed cutting, delivering high dimensional stability.
Factory Direct Quality Assurance: Every machine undergoes dynamic balancing tests, and 48-hour continuous running tests before dispatch.
Global After-Sales & Spare Parts Support: Full technical documentation, installation manuals, and wearing parts lists (blades, diamond wires, guides) provided for global clients.

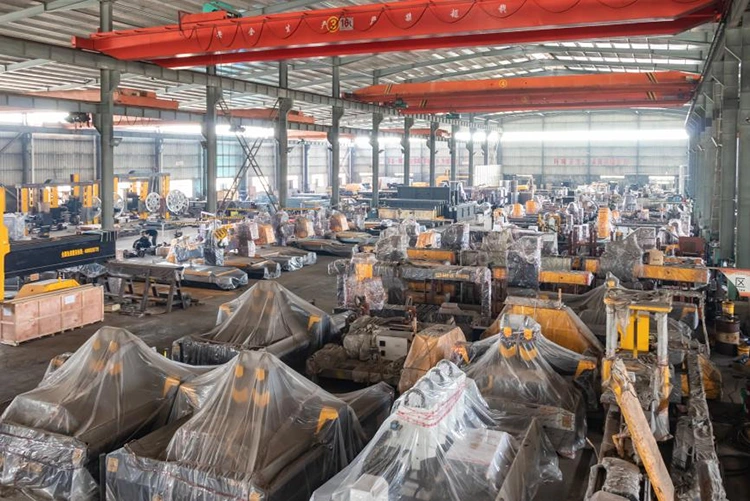

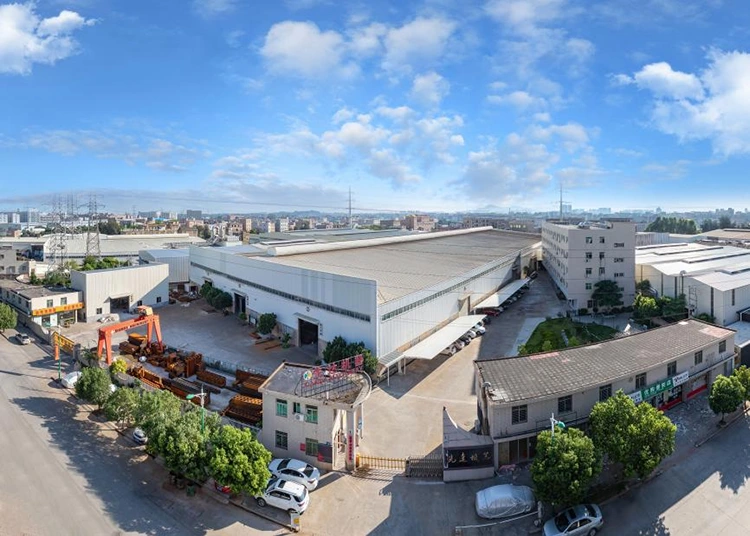

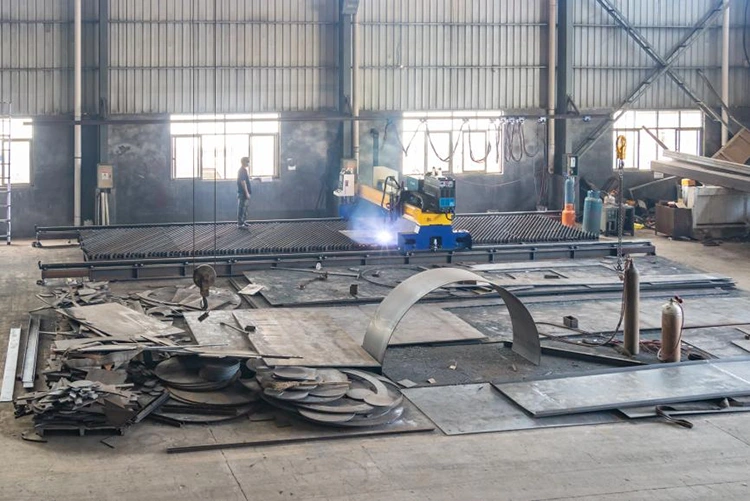

Manufacturer Background: Fujian Xianda Machinery Equipment Co., Ltd. has over 30 years of stone equipment manufacturing experience in Quanzhou, China, operating complete in-house machining, assembly, and testing facilities.
Export Experience: Machines are actively operating in over 50 countries, including Saudi Arabia, UAE, Jordan, Egypt, India, Vietnam, Brazil, and Russia,USA , Poland, etc.
Delivery Lead Time: 25–40 business days from order confirmation and deposit receipt.
Installation & Technical Support
On-Site Installation: Field service engineers available for global overseas setup, wiring, and operator training upon request.
Remote Support: operator manuals, and installation guides provided prior to shipment.
Warranty & Service Terms
12-month warranty for partts
Lifetime technical consultation and spare parts supply at factory cost.
Payment & Shipping Packaging
Suitable for sea transportation. Payment Terms: 30% DEPOSIT AFTER ORDER CONFIRMATION, BALANCE 70% AFTER MACHINE IS READY BEFORE LOADING.
L/C, T/T, D/P, Western Union, PayPal, Money Gram, and others. Supply Capacity: 1000/sets per year.
Order Your XIANDA CNC Dual-Purpose Stone Splitting Machine NOW!
Certifications
XIANDA Certificated: CE, ISO, SGS, CCC, GOST, SONCAP, API, IAF
Contact us today to request a factory-direct quotation！
