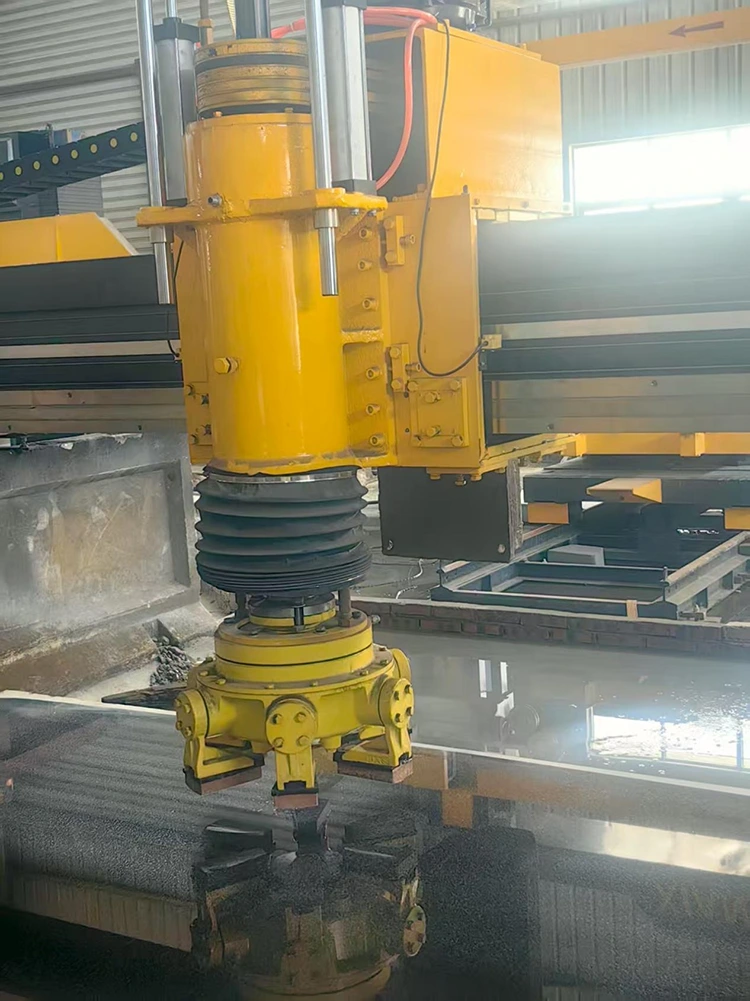

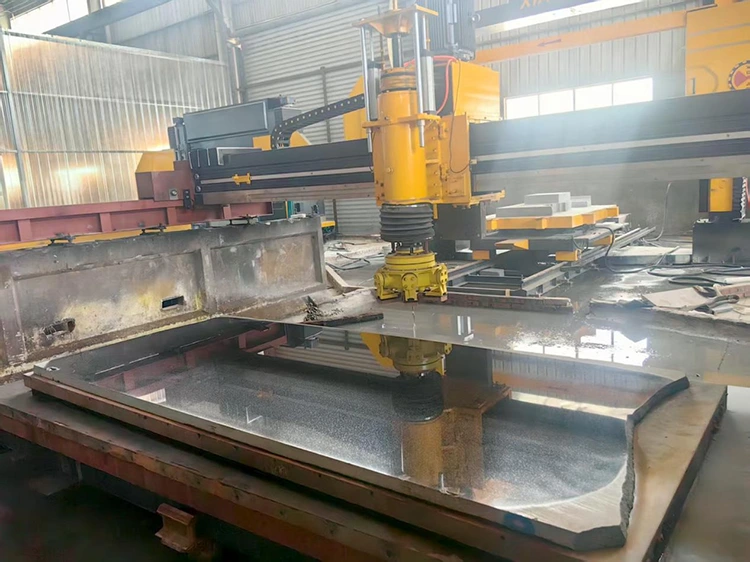

Bridge Type Automatic Grinding Machine
The Xinda Bridge Type Automatic Grinding Machine is specifically designed for polishing marble and granite. Whether it's hard granite or marble with a unique texture, it can be used to polish both types of stone. This machine uses a PLC control system, making it very easy to operate without complicated steps. It also operates very stably and is unlikely to experience any issues.
Send Inquiry
Product Description
This Xianda Bridge Type Automatic Grinding Machine is good for polishing granite and marble, providing smooth operation and high-quality surface finishing. Its structure ensures stable performance and consistent polishing results. With a PLC control system, the equipment is user-friendly, working precise, and reliable.
Technical data
|
Parameter |
Unit |
ZDPM-3522 |
ZDPM-3545 |
|
Front and back travel |
mm |
2200 |
4500 |
|
Left and right travel |
mm |
200 |
200 |
|
Main motor power |
kw |
15 |
15 |
|
Total power |
kw |
19 |
19 |
|
Outline dimension |
mm |
6000*3850*2600 |
6000*6300*2600 |
|
Water consumption |
m³/h |
≈3 |
≈3 |
|
Grinding head type |
/ |
Six claw grinding head |
Six claw grinding head |
|
Number of grinding head |
pc |
1 |
1 |
|
Air compressor power |
kw |
3（Optional） |
3（Optional） |
Production lead time
Within 15–30 days of receiving the deposit.
Quality Assurance
Our skilled quality control team conducts thorough inspections throughout the production process.
Every machine undergoes strict quality checks to ensure consistent performance and reliability.
Upon request, we provide a detailed testing video for customer review before shipment.
Warranty Coverage
All Bridge Type Automatic Grinding Machines and core components come with a 12-month warranty, ensuring peace of mind for your purchase.
Comprehensive Support
1.Rest assured, we provide comprehensive installation and machine operation guidance.
2.Our experienced technical team is available worldwide for support.
3.Our after-sales service is always online—you can reach us anytime you need help.
4.Have questions? Our sales and customer service teams are always ready to help.
