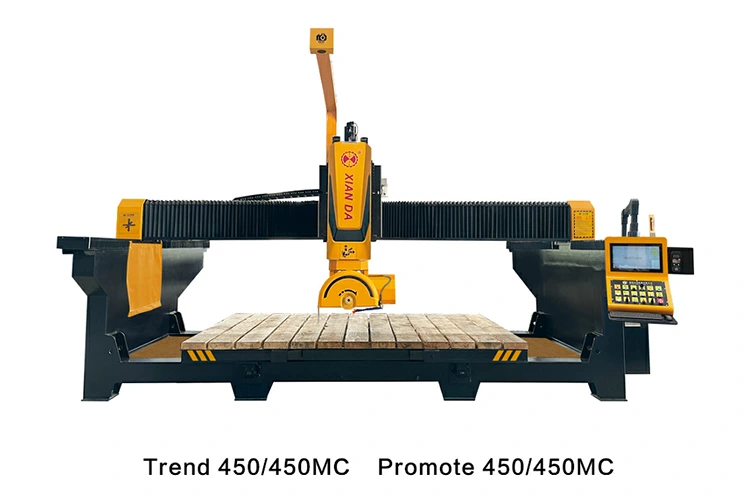

5 Axis Automatic Bridge Cutting Machine
The XIANDA 5 axis Automatic Bridge Cutting Machine totally changes how stone works—due to its advanced 5-axis CNC system and stable build. It’s made for all those complex designs, like curved panels, countertops, washbasins, and custom edges. And it’s not just precise—it stays steady and reliable too.
It’s small in size but packs a punch when it comes to function. For fabricators, this machine makes work way more efficient, cuts down on manual labor, and lets you crank out top-quality stuff without any hassle.
Send Inquiry
Product Description
The XIANDA 5 axis Automatic Bridge Cutting Machine is a brand-new solution for stone processing, built to handle what modern workshops need. It has a top-notch 5-axis CNC control system, so even when you're cutting complex stone designs, it moves smooth, stays accurate, and gets the job done fast.
It comes with high-precision linear guides, ball screw transmission, and an oil-immersed track. All that makes the machine run steady, last a long time, and hold up well over years of use. There's also this absolute bus servo with power-off memory—fancy terms, but basically, even if the power goes out, it doesn't lose its place. That means less downtime and more work getting done.
This machine can do all sorts of jobs: curved panels, vanity tops, washbasins, and those tricky detailed edges. It's got lots of functions but doesn't take up much space, and the controls are easy to figure out. For fabricators, that means making more stuff without sacrificing quality.
Xianda 5 axis Automatic Bridge Cutting Machine your best stone cutting machine solution.
Technical data
|
Parameter |
Unit |
Trend 450 Promote 450 |
Trend 450MC Promote 450MC |
|
Blade diameter range |
mm |
Φ350-Φ450 |
Φ350-Φ450 |
|
Max processing size |
mm |
3200*2000*120 |
3200*2000*120 |
|
Lifting stroke |
mm |
300 |
3200 |
|
Worktable size |
mm |
3200*2000 |
3200*2000 |
|
Table tilting degree |
° |
0、85° |
0、85° |
|
Head rotating degree |
° |
0~360° |
0~360° |
|
Head tilting degree |
° |
0~90° |
0~90° |
|
Air speed |
m/min |
25 |
25 |
|
Repeated accuracy of positioning |
mm |
＜0.1mm/1000 |
＜0.1mm/1000 |
|
Main motor |
kw |
18.5（Permanent magnet motor） |
18.5（Permanent magnet motor） |
|
Gross power |
Kw |
26 |
26 |
|
Water consumption |
mm³/h |
≈2 |
≈2 |
|
Outline dimension |
Mm |
5600*3600*3500 |
5600*3600*3500 |
|
Gross weight |
Kg |
≈6000 |
≈6200 |

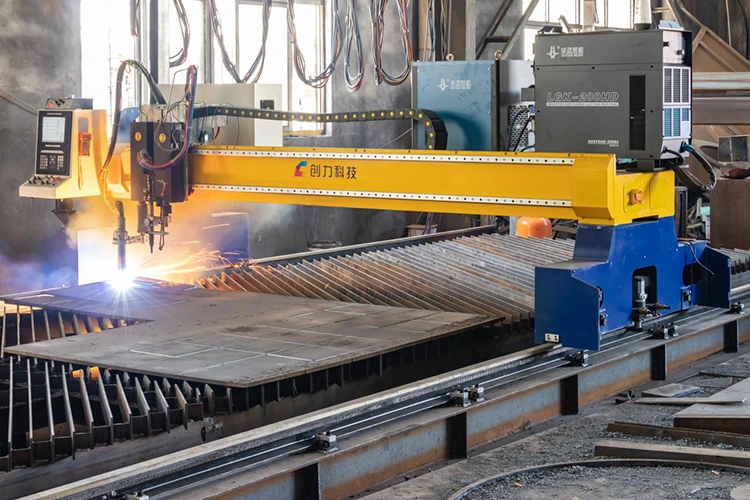

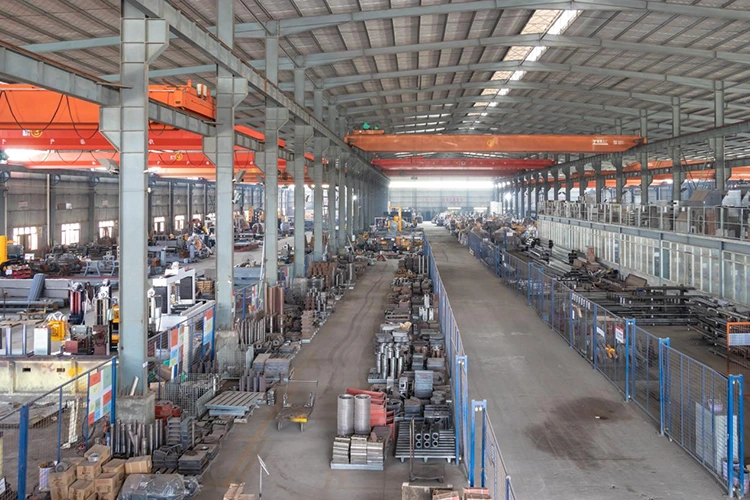

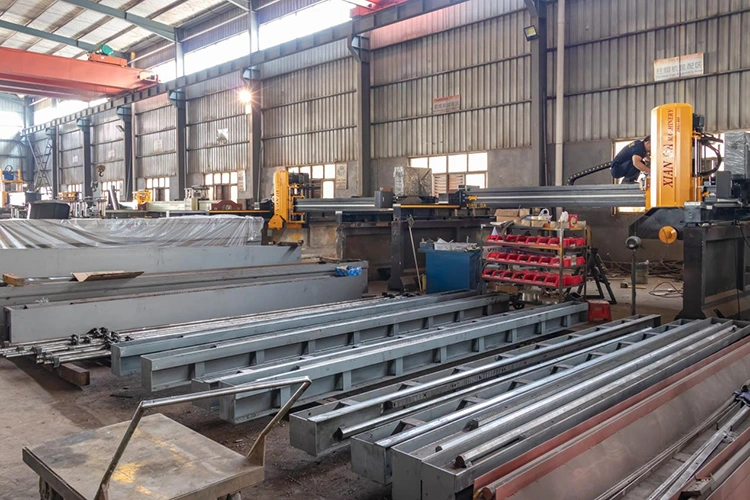

Photo & Video Gallary
Quality Certificates
Production lead time
Within 15–30 days of receiving the deposit.
Quality Control
*We have our own experienced QC.
*Our machine will be strictly inspected.
*We will provide a Testing Video for each machines before shipping out if required by customer.
Warranty
The 5 Axis Automatic Bridge Cutting Machine and its components are covered by a one-year warranty.
Why Xianda being reliable?
Since its establishment in 1985, the company has always aimed at "top technology and excellent quality" and has won many certifications such as ISO Quality Gold Award and CE. Xianda has won many titles such as "China Recommended Construction Manufacturing Enterprise" and "3A Enterprise Credit Rating".
