Fujian Xianda Launches Discovery 4 CNC Diamond Wire Saw Machine for High-Precision Stone Profiling
As modern architecture increasingly incorporates intricate stone elements—from grand Roman columns and curved facades to custom carved monuments—stone fabricators require cutting machinery that delivers both extreme precision and heavy-duty reliability.
To meet these evolving market demands, Fujian Xianda Machinery Co., Ltd. introduces the Discovery 4 CNC Diamond Wire Saw Machine. Engineered with nearly four decades of manufacturing expertise since 1985, the Discovery 4 sets a new benchmark in complex stone processing and architectural shaping.
Engineered for Extreme Stability and Precision
Complex wire saw profiling demands minimum vibration and precise tension control. The Discovery 4 is built with reinforced structural innovations designed to ensure stable operation under continuous industrial workloads.

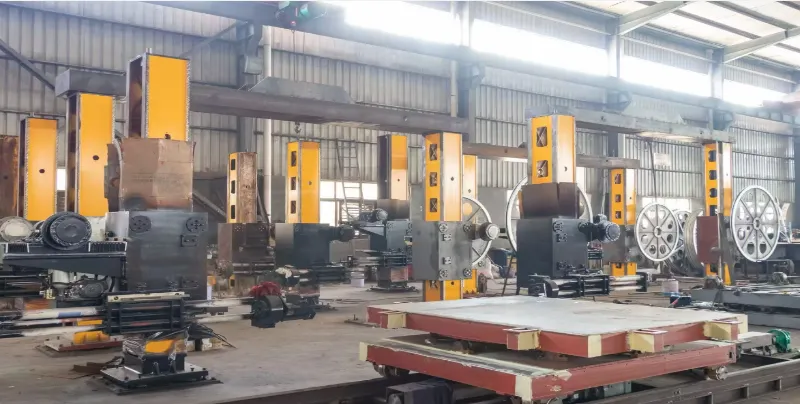

16-Surface Slideway and 28 Rolling Wheels Structure
The 16-surface slideway and 28 rolling wheels structure provides exceptional rigidity along the upright columns, reducing friction and helping maintain alignment accuracy during heavy-duty cutting.
Synchronized Lifting and Double-Nut Trolley
The lifting mechanism combines precision lead screws with double-nut drives to maintain synchronized movement across both sides, providing smooth and controlled vertical feeding.
S-Type Channel Waterproof Cantilever Gearbox
The S-type channel waterproof cantilever gearbox helps prevent slurry, dust, and water from entering the transmission system, protecting internal gears and supporting long-term operation in wet stone-processing environments.
Four-Spindle Linkage CNC System

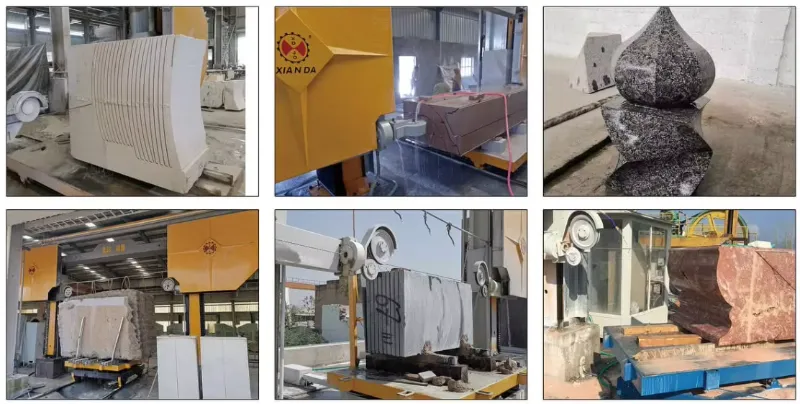

The four-spindle linkage CNC system enables continuous 360-degree interpolation for cutting circular stone slabs, architectural columns, numerals, letters, and custom geometric shapes in granite, marble, and quartz.
Technical Specifications
To accommodate different block dimensions and factory layouts, the Discovery 4 series is available in five configurations with different processing capacities and table designs.
| Parameter | Discovery 4-2000 | Discovery 4-2500 | Discovery 4-3000 | Discovery 4-2500 SA | Discovery 4-3000SA |
|---|---|---|---|---|---|
| Max Processing Size | 2000 × 3000 × 1500 mm | 2500 × 3000 × 1500 mm | 3000 × 3000 × 1500 mm | 2500 × 3000 × 1500 mm | 3000 × 3000 × 1500 mm |
| Worktable Dimension | 1500 × 2500 mm | 1500 × 2500 mm | 1500 × 2500 mm | 1500 × 2000 mm | 1500 × 2000 mm |
| Table Bearing Weight | 20 T | 20 T | 20 T | 20 T | 20 T |
| Table Rotation Angle | / | / | / | 0–360° | 0–360° |
| Table Rotation Control Mode | / | / | / | Servo motor drive | Servo motor drive |
| Wire Speed | 20–40 m/s | 20–40 m/s | 20–40 m/s | 20–40 m/s | 20–40 m/s |
| Main Motor Power | 15 kW (Permanent magnet motors) | 15 kW (Permanent magnet motors) | 15 kW (Permanent magnet motors) | 15 kW (Permanent magnet motors) | 15 kW (Permanent magnet motors) |
| Outline Dimension | 6800 × 6300 × 4000 mm | 7800 × 6300 × 4000 mm | 8800 × 6300 × 4000 mm | 7800 × 6800 × 4300 mm | 8800 × 6800 × 4300 mm |
| Water Consumption | ≈3 m³/h | ≈3 m³/h | ≈3 m³/h | ≈3 m³/h | ≈3 m³/h |
About Fujian Xianda Machinery

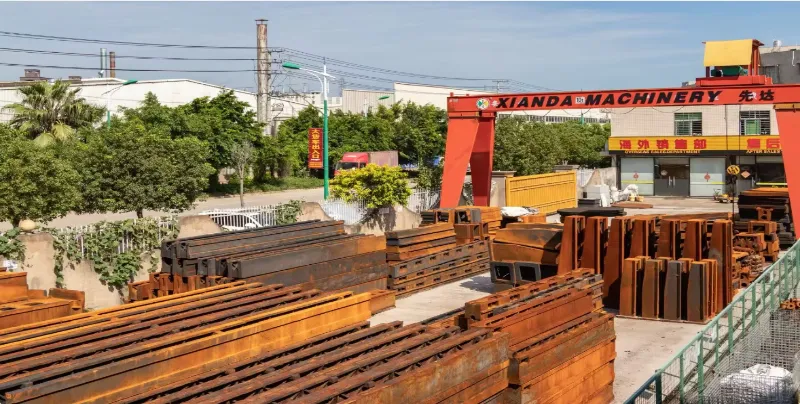

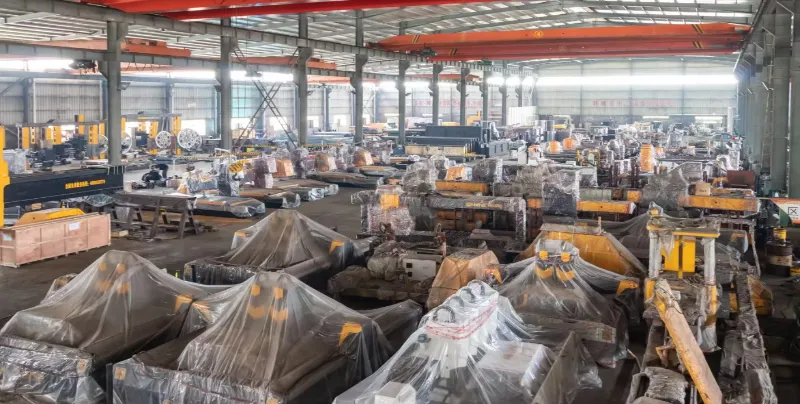

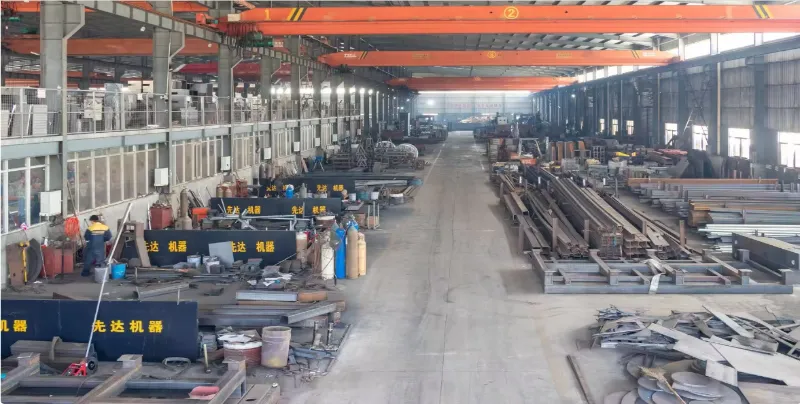

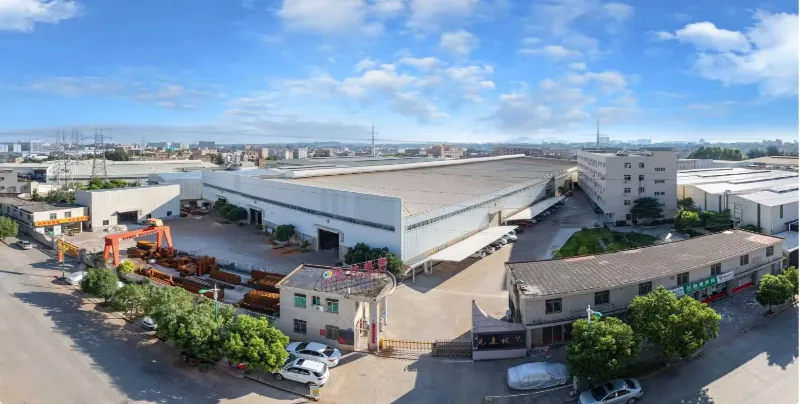

Established in 1985 and covering over 20,000 square meters in Jinjiang, Fujian, Fujian Xianda Machinery Co., Ltd. is a designer and manufacturer of stone processing machinery. With over 80% market share in Chinese column processing machinery and installations across more than 50 countries worldwide, Xianda delivers CE-compliant, ISO-certified stone cutting solutions tailored to modern fabrication needs.
Xianda's experience in stone machinery manufacturing supports applications ranging from standard block processing to complex architectural profiling. The company's equipment is designed for stone fabricators, architectural stone processors, monument manufacturers, and other professional stone-processing operations.
Request Discovery 4 CNC Diamond Wire Saw Machine Information
For detailed inquiries, custom configurations, processing requirements, or testing videos of the Discovery 4 CNC Diamond Wire Saw Machine, contact the Xianda export team for technical information and a factory-direct quotation.
